System Earth Plate

Designed for beach or marine installation

A large round mirror positioned in a river, held up by purple straps attached to a tripod structure. A trowel or scraper tool is resting on the mirror, possibly for cleaning or adjusting.

    • Suitable for 25 year system earth for powered submarine cable systems.

    • Concept is cable supply comes from client spare. The cable can be delivered to site on a drum or overpulled during the shore end landing operation from shipboard or maintenance spares

    • The Earth plate is designed for beach or marine installation

    • Compatible with single or double armour cable design 24mm-54mm Ø

    • Compatible with core (diameter over polyethylene) cables 17mm-23mm Ø

    • Optional sea anchor kit

    • Includes joint for manhole connection between the submarine earth plate cable and terrestrial cable

    Watch the REV 110 in action

  • Download

  • Mechanical assembly with a large circular base, a long rectangular component, and several evenly spaced bolts or fasteners.

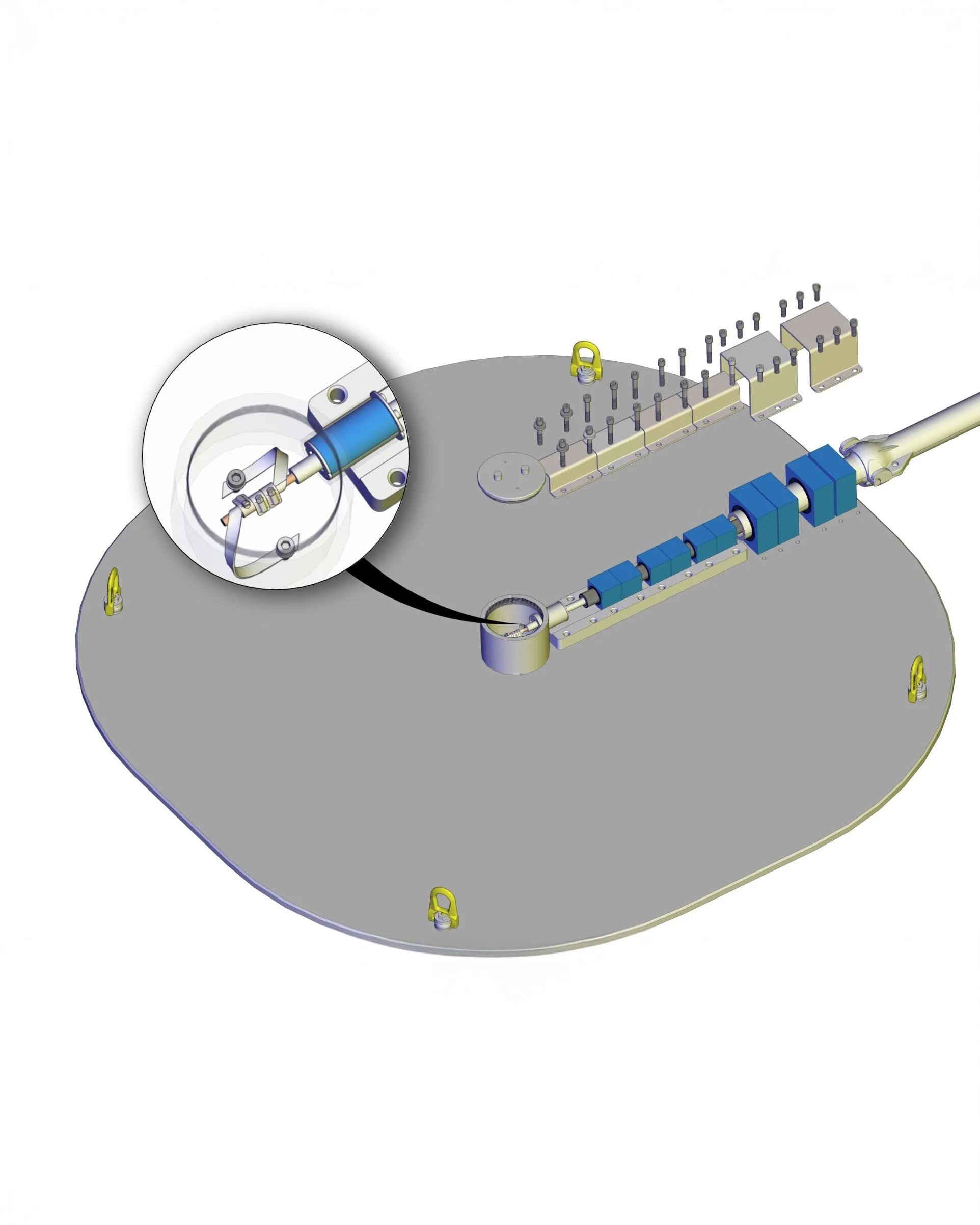

  • CAD illustration of a mechanical assembly with a circular base, a linear rail system with blue blocks, multiple screws, and a zoomed-in section showing a specific component.
